Wilwood 17-19 Ford F150 Raptor Big Brake Kit - Front

Rating: Not Rated Yet
Wilwood’s Tactical Extreme TX6R Big Brake kit for the Raptor and F150. TX6R radial mount six-piston calipers and massive 15.5 Spec-37 alloy rotors. 100% Bolt on. Requires 20" wheels.
  • Manufacturer: Wilwood
  • SKU: ZZ-ww140-15887
Your Price:
$ 2,659.54


Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles.


Using TX6R radial mount six-piston calipers and massive 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.


**Note - A small percentage of Raptor's have required the addition of a heim-joint style tie-rod end kit to clear the new rotors.  Alconkits sells a compatible kit here should you need it.  ***


Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Black Powder Coat
Rotor Diameter: 15.50
Min Wheel Diameter Req'd*: 20
*This Brake Kit may fit 20-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram


Kit Components & Specifications
Left Hand - Part No: 120-13818-BK
Right Hand - Part No: 120-13817-BK
Type: TX6R
Finish Color: Black Powder Coat
Piston Count: 6
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.62
Piston 3 Bore (in): 1.62
Piston Area (In²): 6.52
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 10120
Brake Pad Area (In²): 12.69
Brake Pad Volume (In³): 6.81
Pad Compound: BP-20
TX6R Caliper - Black Powder Coat TX6R Caliper - Black Powder Coat

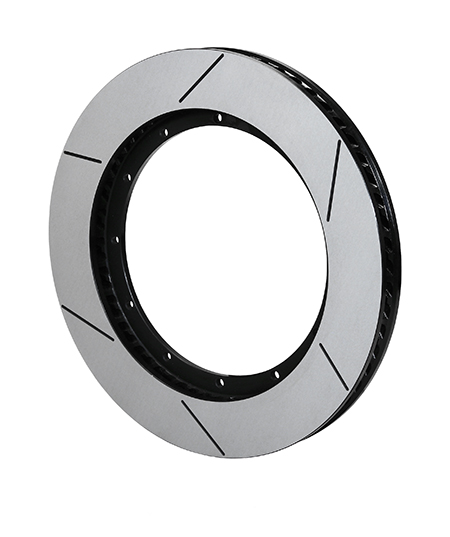

Left Hand - Part No: 160-13790-GTB
Right Hand - Part No: 160-13789-GTB
Type: GT 60 Curved Vane
Style: GT Slotted
Surface Finish: Black Electro Coat
Material: Spec-37 Iron
Outside Diameter (in): 15.50
Width (in): 1.38
Vane Count: 60 CV
Design Type: GT-BLK
Bedded: No
Dynamically Balanced: Yes
GT 60 Curved Vane - Spec-37 Iron - Black Electro Coat GT 60 Curved Vane - Spec-37 Iron - Black Electro Coat
Rotor Hats
Hat - Part No: 170-15057
Type: Truck Hat - Standard
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.700
Bolt Circle 1: 6 X 5.32
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.000
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000
Truck Hat - Standard - Aluminum - Black E-Coat Truck Hat - Standard - Aluminum - Black E-Coat
