The REAL truth about warped brake rotors...

The typical situation: New pads are fitted to a new pair of brake discs. A week later there’s a vibration or “judder” when the brakes are applied. A call to a mechanically inclined friend and an online search offers the diagnosis—the brake rotors are warped.

Feeling some shudder in the steering wheel when applying the brakes? Conventional wisdom says that the rotors are warped, but really you might have a problem with friction material transfer. Don't worry, though, as the fix is relatively simple.

The diagnosis may be further verified by measuring the surface of the discs to see if they vary in thickness. Some customers have the discs turned on a brake lathe to remove the high spots. That stops the vibration, apparently proving that the discs were warped. Except that the symptoms come back in a couple of weeks.

Now the frustrated and disappointed customer calls us or simply returns the brake discs as defective.

The fact is: The discs were never warped at all. Every warped brake disc that we’ve investigated with the assistance of our suppliers shows uneven patches of friction material from the brake pads on the surface of the disc. These patches cause variation in thickness (run-out) and the vibration under braking. Brake manufacturers have been struggling to deal with this situation for years because warped discs are so readily blamed for brake-related vibrations.

To understand what’s taking place, let’s look at what happens when we step on the brake pedal. The pads press against the surface of the disc, converting the energy of motion into the energy of heat through friction. What you may not know is that there are two kinds of friction at work: abrasive and adherent.

Abrasive Friction: According to Carroll Smith, author of “The Warped Brake Disc and Other Myths of the Braking System,” abrasive friction involves breaking the crystalline bonds of both the pad material and the cast iron of the disc. Breaking these bonds generates the heat of friction. In abrasive friction, the bonds between the crystals of the pad material (and to a lesser extent, the disc material) are permanently broken. The harder material wears the softer away, meaning the disc wears the pad. When we see the word friction, it is abrasive friction that comes to mind.

Adherent Friction: When brake pads press against the surface of the steel disc, some of the pad material transfers directly to the surface of the disc forming a thin, uniform layer. The surface of the steel disc and the surface of the brake pad become identical in composition. As the disc moves between the pads, friction material transfers in both directions, breaking and reforming bonds at the molecular level. This transfer of material in both directions is a normal and essential part of braking friction.

Running the right brake pads and properly bedding them in will often cure any shudder. This can easily be an afternoon project.

Pad Material: Brake pads all use a combination of abrasive and adherent friction during braking. Pad material differs based on the manufacturer’s specifications, which are always attempting to balance performance, wear, noise, and to a lesser extent, dust. There must be enough abrasive elements to keep the disc surface clean, and the pads must provide uniform adherent friction material transfer to the disc within the intended temperature range.

Uneven Friction Material Transfer: Pads that are used beyond their intended temperature range will cause problems. Pads can be heated to the point where they transfer friction material to the disc in random, uneven patches. The thick and thin layers are not generally visible, but the driver can feel vibration and measure it with a dial indicator. Modern brake pads are engineered with the best possible combination of features, but they are still limited to their intended range of operating temperatures.

Pad Selection: Generally, there are street, performance and racing brake pads, and most quality pads have broader temperature ranges than pads made 10 years ago. However, no street pads are suitable for racing, and no racing pads are suitable for the street. Performance street pads are a compromise—they’re more effective at low temperatures than racing pads and they can operate at higher temperatures than street pads.

Where to Start: If you have vibration under braking with new discs and pads, first eliminate the obvious by making sure that the hub and wheel flange are flat, clean, and rust free. A miniscule amount of run-out here will be magnified at the edge of the brake disc. Verify that disc mounting hardware is in good condition, installed correctly, and tightened in the correct order according to the recommended torque specification.

Bedding-In Your Brakes
When new pads and brake discs are fitted, the most important thing you can do to prevent problems is to properly bed the brakes. This critical step is the initial transfer of friction material from the pad to the disc forming a smooth, uniform layer. It establishes a foundation that’s essential for proper brake performance. It minimizes the chance of laying down uneven, random patches of friction material which will be felt as vibration when the brakes are applied.
All high-performance discs and pads should come with installation and break-in instructions. The procedures are similar for all major manufacturers.
Since you don’t come to a complete stop during pad or disc break-in, you have to plan where and when you do this procedure for safety purposes. If you come to a complete stop before the break-in process is completed, there is a chance that nonuniform pad material transfer or pad imprinting will take place, resulting in an irritating vibration during braking.

Basic Bed-In Procedure
1. After installing new disc rotors and/or brake pads, perform eight to 10 slowdowns applying moderate pressure from about 30 to 40 mph (50 to 60 kph) without coming to a stop.
2. Make an additional two or three slowdowns applying heavy pressure from about 40 to 45 mph (60 to 70 kph) without coming to a stop.
4. Allow at least 15 minutes for the brake system to cool down.
5. While the car is at rest during cool-down, DO NOT APPLY THE BRAKES. If you do, material will transfer from the pads to the rotor and probably give you braking vibration.

After Brakes Are Bedded-In

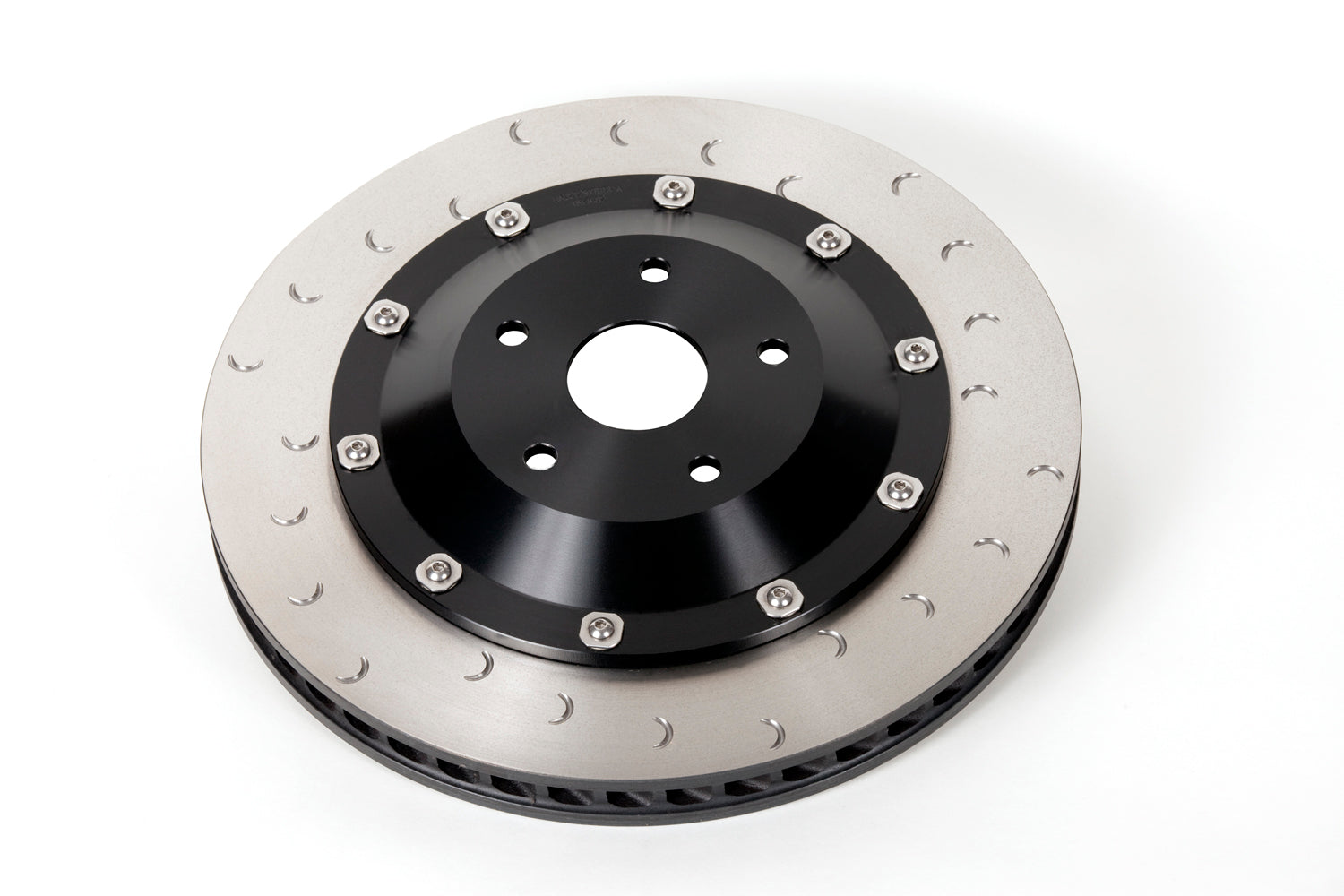

Slotted rotors reduce brake fade and pad material build-up on the rotor surface.

At this point, your new disc rotors and/or pads are ready for normal use with a thin, uniform coating of friction material on the rotors. But the full process of building up the friction layer can take 190 to 300 miles (300 to 500 kms) depending on your driving style. There are two situations you should try to avoid during that time, as they can ruin that fragile friction coating, requiring another round of bedding-in.
First, if you drive gently over a period of time with little heavy braking, you can actually strip off the necessary thin layer of friction material on the surface of the disc. This makes your brakes vulnerable to problems again. You can restore it by repeating the bedding-in procedure.
Second, if you have an incident where you are driving at high speed and have to brake hard coming to a complete stop with your foot on the brake pedal, the pads will imprint on the disc surface, transferring what seems like a hunk of friction material. This uneven material will cause vibration.
You can generally get rid of the excess material with abrasive friction by repeating the bedding-in process. If it’s a bad imprint and you can’t get rid of it this way, take your car to a shop with an on-car brake lathe. This process returns the discs to dead flat and then you can re-bed.
So bedding-in may not be a one-time deal, but it will work with patience

If you allows the uneven pad deposition to continue for too long, eventually the rotor is “deformed” in that it will wear at a different rate. A harder substance called “cementite” will build up on certain sections and will not wear as fast as it is much harder than the standard iron. As a result, the bedded section wears more quickly, developing high and low spots. The iron itself isn’t warped, it is just worn unevenly.
