ICON 10-14 Ford Raptor Front 3.0 Series Shocks VS RR CDCV Coilover Kit - Passenger Side| 95000R

Product Description

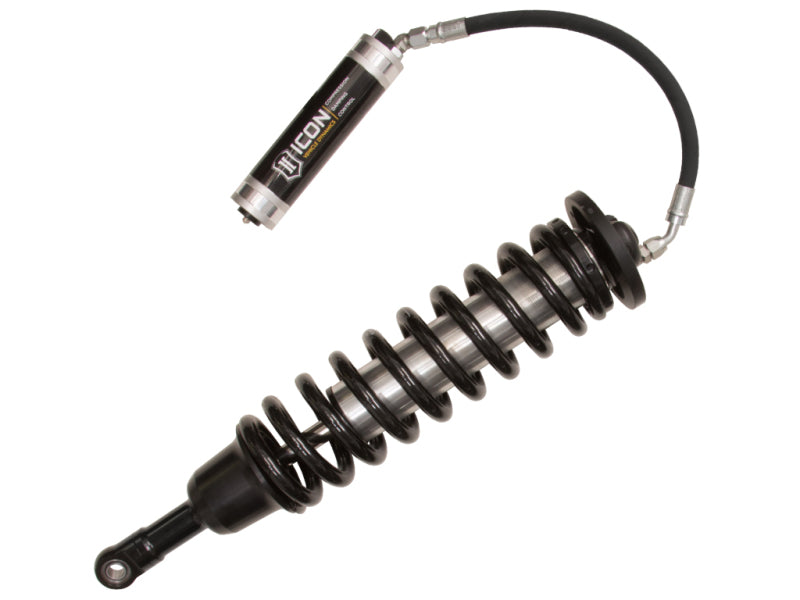

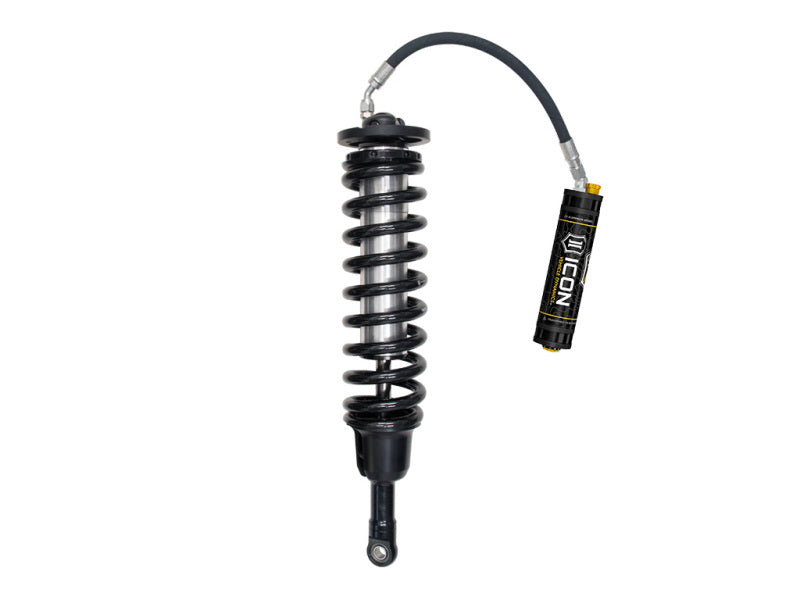

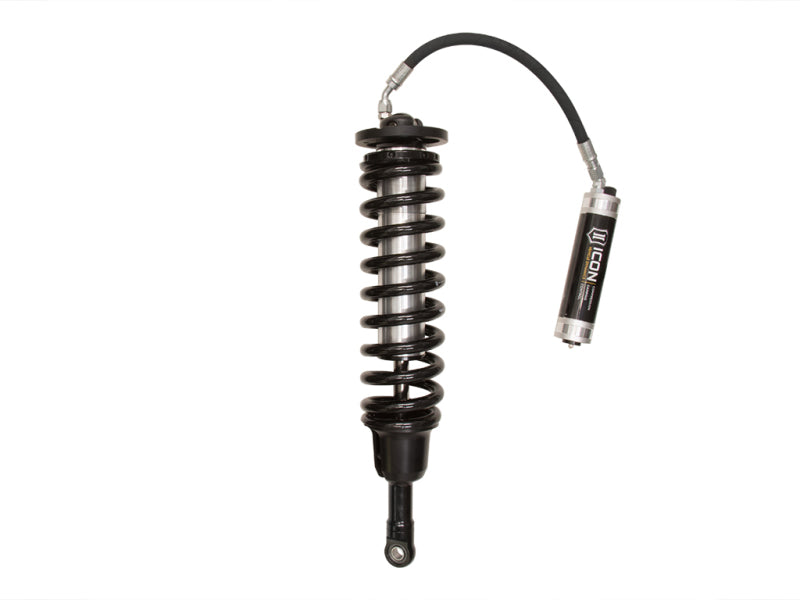

For the front end of your 2010-2014 Ford SVT Raptor or F-150, the ICON Vehicle Dynamics 3.0 VS Front Coil-Over Shock (Part No. 95000R, passenger-side) brings high-performance engineering tailored for high demands—whether you’re cruising pavement, hauling gear, or hammering across rough terrain.

Technical Highlights & Benefits

• True 3.0″ main piston design – Unlike smaller diameter internals, this shock starts with a robust 3.0-inch piston for major damping control and improved fluid flow.

• Remote nitrogen-charged reservoir (10″) in CNC-machined 6063-T832 aluminum – Provides superior heat dissipation and reduces fade under sustained high-load use.

• Adjustable ride height from approx. 1″ up to ~3.5″ of lift – Offers flexibility to dial in your stance, tire fitment and geometry without sacrificing control.

• High-resolution external compression adjustment valve (10 settings) – Enables fine-tuning of firmness from comfortable daily driving to aggressive off-road use.

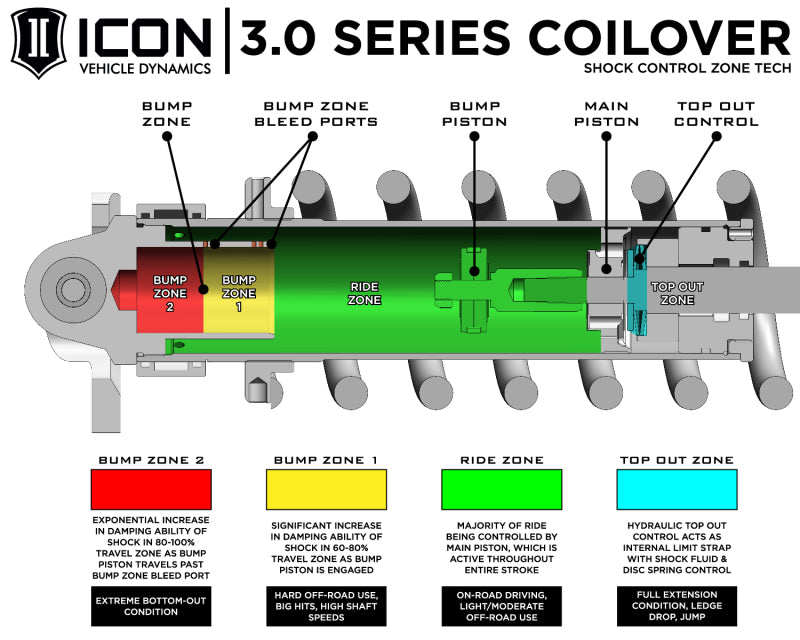

• Internal hydraulic bump zone (last ~40% of travel) – Acts like an internal hydraulic bump-stop, proactively controlling bottom-out behavior, especially during big impacts.

• Oversized 1″ shock shaft, multi-stage Cad plated finish, PTFE-lined bearings and billet rod ends – Built for durability, precision and long-term consistency.

Why This Matters for You & Your Driving Experience

• Sharper on-road performance: With the large piston diameter and adjustable compression, you’ll feel more composed under hard braking, cornering, or hauling. Body roll, dive and instability are significantly reduced compared to stock.

• Enhanced off-road capability: The design delivers more controlled wheel travel, better impact absorption and improved articulation. You’ll maintain momentum over rough terrain, whoops or ruts with fewer jarring transitions.

• Stand-alone upgrade or part of a full system: While this unit is the passenger side coil-over, it fits into the broader front-end suspension upgrade strategy. It gives you premium front-end performance whether you’re upgrading just one side (for replacement) or matching the driver-side 95000L for a full front upgrade.

• Tuning flexibility for your needs: Whether you drive daily, tow occasionally or go off-road on weekends, the adjustable height and compression give you the ability to tune the ride to match your use case.

• Durability under load: The remote reservoir and oversized internals help ensure the shock performs consistently under load, heat, and extended use — especially useful if you’re carrying gear, accessories or larger tires.

Ideal For You If…

• You own a 2010-2014 Ford SVT Raptor or equivalent F-150 front suspension architecture and want best-in-class front-end performance.

• You plan to raise your truck’s front height roughly 1-3.5″ and want a high-quality coil-over solution built for that range.

• You value the ability to fine-tune your front suspension—both ride height and damping—rather than rely on a fixed configuration.

• You want a front-end shock designed for both daily driving comfort and aggressive off-road demands.

Installation & Considerations

• Confirm you’re pairing this 95000R (passenger side) with the matching driver-side 95000L if you’re doing both sides.

• Ride height settings should respect manufacturer instructions (e.g., limiting droop travel or over-preloading will compromise ride quality).

• Because of the lift and larger diameter coil-over design, alignment, bump stop clearance, and wheel/tire fitment should be done carefully to avoid rubbing or unintended suspension behavior.

• The remote reservoir mounting location must ensure adequate clearance and heat dissipation; proper routing is important.

• While this is a front coil-over unit, the full performance benefit is maximized when the rest of the suspension (rear shocks, or full system) complements it. Running the front alone still gives major improvements, but pairing with matched components gets you full potential.

Upgrade your truck’s front suspension with the ICON 95000R Front 3.0 VS Coil-Over Shock and experience sharper control, robust off-road capability and refined ride quality. Whether for daily commutes, weekend adventures or heavy-use scenarios, this is a precision-engineered front-end solution built to perform.
