ICON 2022-2023 Toyota Tundra 1.25-3.5in Stage 6 Suspension System Tubular | K53196T

by ICON
SKU ICOK53196T
Original price $3,511.75 USD - Original price $3,511.75 USD
Original price
$3,511.75 USD
$3,511.75 USD - $3,511.75 USD
Current price $3,511.75 USD
Lead Time: Average 1-2 Days
Ask a question

PRODUCT INFORMATION

Product Title:
ICON Stage 6 Tubular Suspension System (SKU: ICOK53196T) for 2022–24 Toyota Tundra 2–3.5″

Product Description:

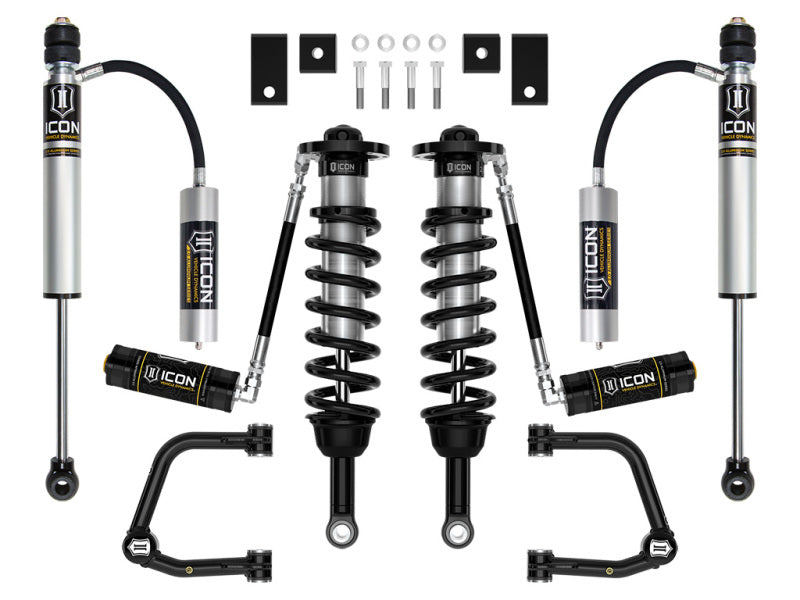

The ICON Stage 6 Tubular Suspension System (SKU: ICOK53196T) is a comprehensive suspension upgrade engineered specifically for 2022–2024 Toyota Tundra models. This system integrates high-performance components to deliver enhanced control, longer travel, heat dissipation and alignment stability for demanding on- and off-road conditions.

Key Technical Features:

  • Front remote-reservoir coilovers (V.S. 2.5 Series) deliver up to 2–3.5″ of lift height adjustability when paired with ICON tubular upper control arms, enabling fitment of aggressive 35″ tires while maintaining proper geometry.

  • Rear V.S. 2.0 Aluminum Series remote-reservoir monotube shocks are tuned for the 2022-24 Tundra, offering improved oil volume, cooler operating temperatures and reduced damper fade during heavy use.

  • Tubular upper control arms feature serviceable ICON Delta Joint PRO ball joints, enabling full suspension travel (bump and droop) without binding, and correcting caster for improved steering and handling.

  • Included sway bar drop kit optimizes sway bar link geometry through increased suspension travel, reducing unwanted bind and preserving articulation.

  • Application-specific engineering ensures compatibility with 2022–23 (or 2022–24 where applicable) Tundra models, including Limited, TRD Pro, Platinum, 1794 Edition, Capstone, SR5 and SR variants.

Technical Considerations:
This is a high-precision suspension system intended for users with performance-oriented vehicle builds. Installation requires competent mechanical capability, proper alignment and, in many cases, compatibility verification with additional aftermarket modifications (e.g., wheel/tire upgrades, brake components, calibration). The remote reservoir architecture, larger shock bodies and tubular control arms significantly alter the load paths and suspension dynamics compared with stock. Proper installation torque, thread locking, and follow-up inspections during break-in are strongly recommended to ensure long-term performance and durability.


This Part Fits:



Year Make Model Submodel
2022-2023 Toyota Tundra 1794 Edition
2022-2023 Toyota Tundra Capstone
2022-2023 Toyota Tundra Limited
2022-2023 Toyota Tundra Platinum
2022-2023 Toyota Tundra SR
2022-2023 Toyota Tundra SR5
2022-2023 Toyota Tundra TRD Pro



Expert FAQ:

  1. What lift range does this system support?
    The Stage 6 Kit with SKU ICOK53196T supports approximately 2″ to 3.5″ of front lift when combined with ICON’s tubular upper control arms, enabling larger wheel/tire packages while maintaining geometry.

  2. How do the remote-reservoir shocks benefit performance?
    Remote reservoirs increase oil volume and heat-dissipating surface area, reducing fluid heat-up and cavitation under sustained heavy use — this results in more consistent damping and improved control off-road and under load.

  3. Are all 2022-24 Tundra models supported?
    The kit lists compatibility with 2022-23 (and in some regions 2024) Tundra models including Limited, TRD Pro, Platinum, Capstone, 1794 Edition, SR5 and SR. Fitment for other trims or international variants should be confirmed.

  4. Does installation require additional components?
    Yes — installation may require proper alignment, and depending on other modifications (wheel/tire size, brake upgrade, lift height), additional supporting hardware or calibration may be necessary for optimal performance.

  5. What maintenance or inspection should I plan?
    Given the performance nature of the components (remote reservoirs, large bore shocks, Delta Joint PRO arms), periodic inspection of fittings, mounting hardware, and ball joint articulation is recommended. Monitoring for shock fluid leaks, reservoir hose condition, and bushings wear will help maintain performance integrity.
