ICON 2022-2023 Toyota Tundra 1.5-2.25in Stage 3 Suspension System | K53193

Product Title:

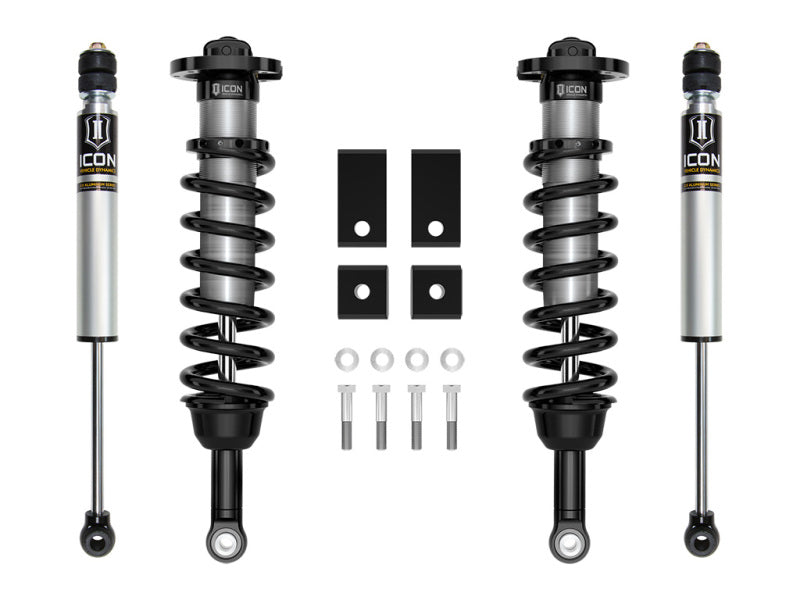

ICON Stage 3 Suspension System (SKU: ICOK53193) for 2022-24 Toyota Tundra — 1.25-2.25″ Front Lift

Product Description:
The ICON Stage 3 Suspension System (SKU ICOK53193) is engineered for 2022-2024 Toyota Tundra models, delivering a factory bolt-on upgrade that improves ride control, handling and wheel-travel without extreme lift.

Key Technical Features:

• Front coil-over assembly: ICON V.S. 2.5 Series adjustable internal-reservoir coilovers. These allow approx. 1.25″ to 2.25″ of front ride height lift when used with the OE upper control arms, enabling fitment of larger tires (up to ~35″) without major geometry compromise.

• Rear shock upgrade: ICON V.S. 2.0 Aluminum Series internal-reservoir monotube rear shocks, tuned specifically for the vehicle’s load and suspension behavior, offering improved rear damping and better ride balance.

• Sway-bar drop kit: Included front sway bar drop brackets reduce bind in the OE sway bar links during increased wheel travel, preserving articulation and reducing unwanted stress on components.

• Vehicle-specific engineering: The system is designed for 2022-24 Tundra trims including SR, SR5, Limited, Platinum, 1794 Edition, Capstone and TRD Pro (both GAS and HYBRID where applicable) — ensuring fitment and function are optimized.

• 100% bolt‐on installation: No drilling or welding required; utilizes existing mounting points and retains factory serviceability.

Technical Considerations & Install Notes:
This Stage 3 system is a performance-oriented upgrade—not just a simple leveling kit. Installation should be performed by a qualified technician, as proper alignment (caster/camber), torque verification, and post-install inspection are critical for optimum performance and durability.
Although the kit supports up to ~35″ tires with minimal trimming, going beyond the stated lift or using aftermarket control arms will affect suspension geometry, driveshaft angles, and may require additional modifications.
Additionally, because the front lift is moderate (1.25-2.25″) and uses OE upper control arms, alignment correction is more reliant on the coil-over settings rather than full control-arm replacement.

Expert FAQ:

This Part Fits:

Expert FAQ:

What is the exact front lift range of the kit?
The kit is engineered for approximately 1.25″ to 2.25″ of front lift over stock when used with OEM upper control arms.

How does the rear shock upgrade benefit ride quality?
The ICON V.S. 2.0 rear shocks use an internal reservoir design, which increases oil volume and cooling surface area compared to standard shocks—reducing fade during sustained use, improving damping consistency and balancing the upgraded front.

Will I need new upper control arms or other geometry parts?
For the specified lift range (1.25-2.25″) the kit retains OEM upper control arms. However, if you pursue larger tires, greater lift, or aftermarket arms, then alignment geometry corrections and components may be required.

Are all 2022-24 Tundra trims supported?
Yes, the system is designed for 2022-24 Tundra models including SR, SR5, Limited, Platinum, 1794 Edition, Capstone and TRD Pro (both gas and hybrid variants) according to the vendor fitment listings.

What installation and maintenance should I plan for?
Given the upgraded coil-overs and remote reservoir style shocks, you should plan for: a full alignment after install; periodic check of mounting hardware, coil-over locking rings, shock body condition, and ensuring the sway bar drop links remain properly torqued. Also monitor for any abnormal wear or travel limitation after installation.
