ARB BP-51 Suspension Kit – (08-21) LC200 | OMELC08BP51L

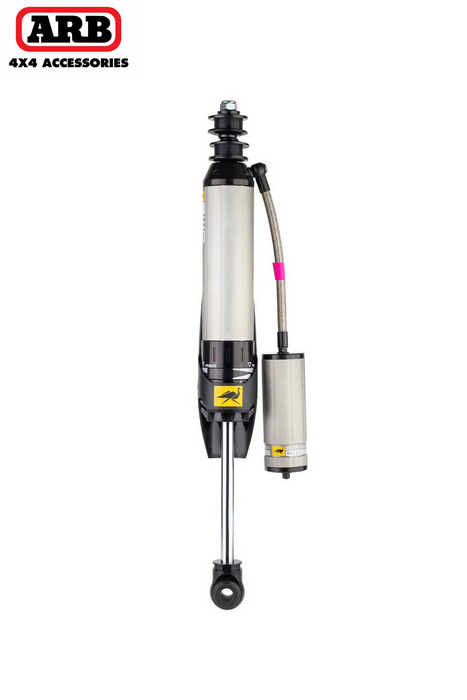

The ARB BP-51 Suspension Kit (PN OMELC08BP51L) is a complete front and rear suspension system engineered specifically for the Toyota Land Cruiser 200 Series (LHD). Designed, tested, and manufactured in Australia, the BP-51 system delivers precise damping control through its internal bypass technology, offering both position-sensitive compression and rebound adjustment.

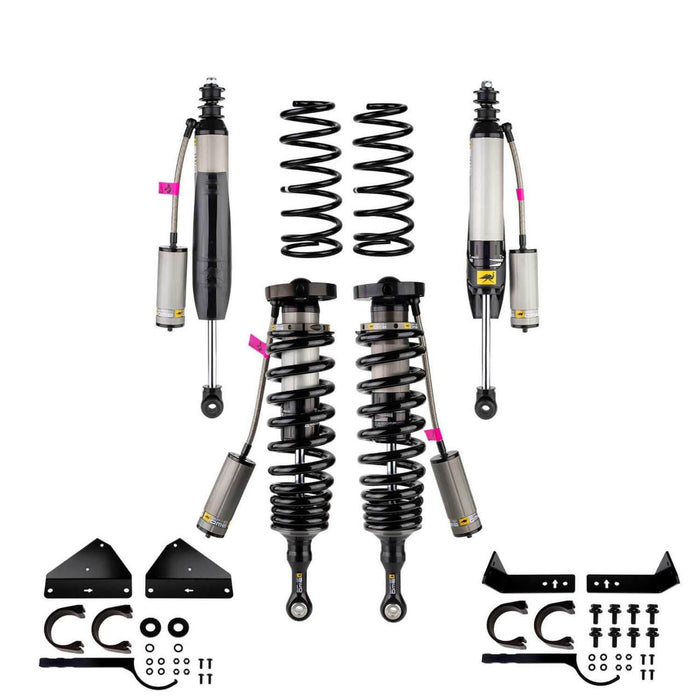

Constructed from 6061 anodized aluminum, the monotube design provides exceptional heat dissipation and corrosion resistance for extended service life in demanding environments. The kit includes height-adjustable coilovers, rear shocks, and all required fitting components for direct bolt-on installation without modification.

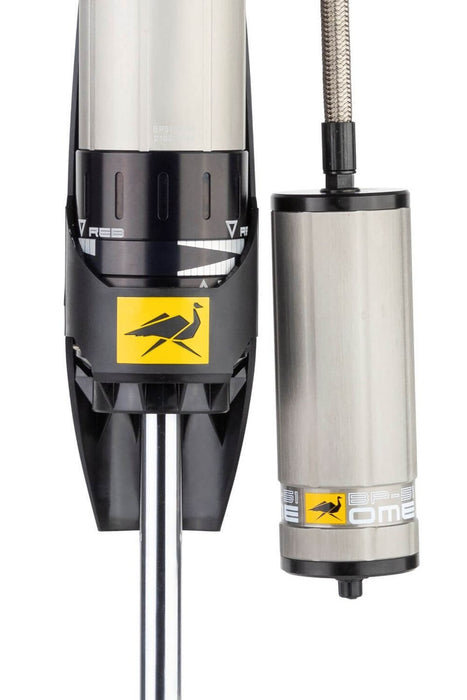

BP-51’s dynamic bypass architecture ensures balanced on-road handling and improved off-road compliance, maintaining chassis control and ride comfort across variable terrain. The external adjusters allow fine-tuning for vehicle load, driving style, or terrain conditions, enabling optimized suspension performance for touring, towing, or expedition use.

Technical Highlights:

• Vehicle: Toyota Land Cruiser 200 Series (LHD)
• Part Number: OMELC08BP51L
• Type: BP-51 Bypass Shock Suspension Kit (Front & Rear)
• Construction: 6061-T6 anodized aluminum body, fully rebuildable and serviceable
• Adjustability: Independent compression and rebound control
• Mounting: Direct bolt-on, no chassis modification required
• Designed and manufactured by ARB, Australia

This Part Fits:
