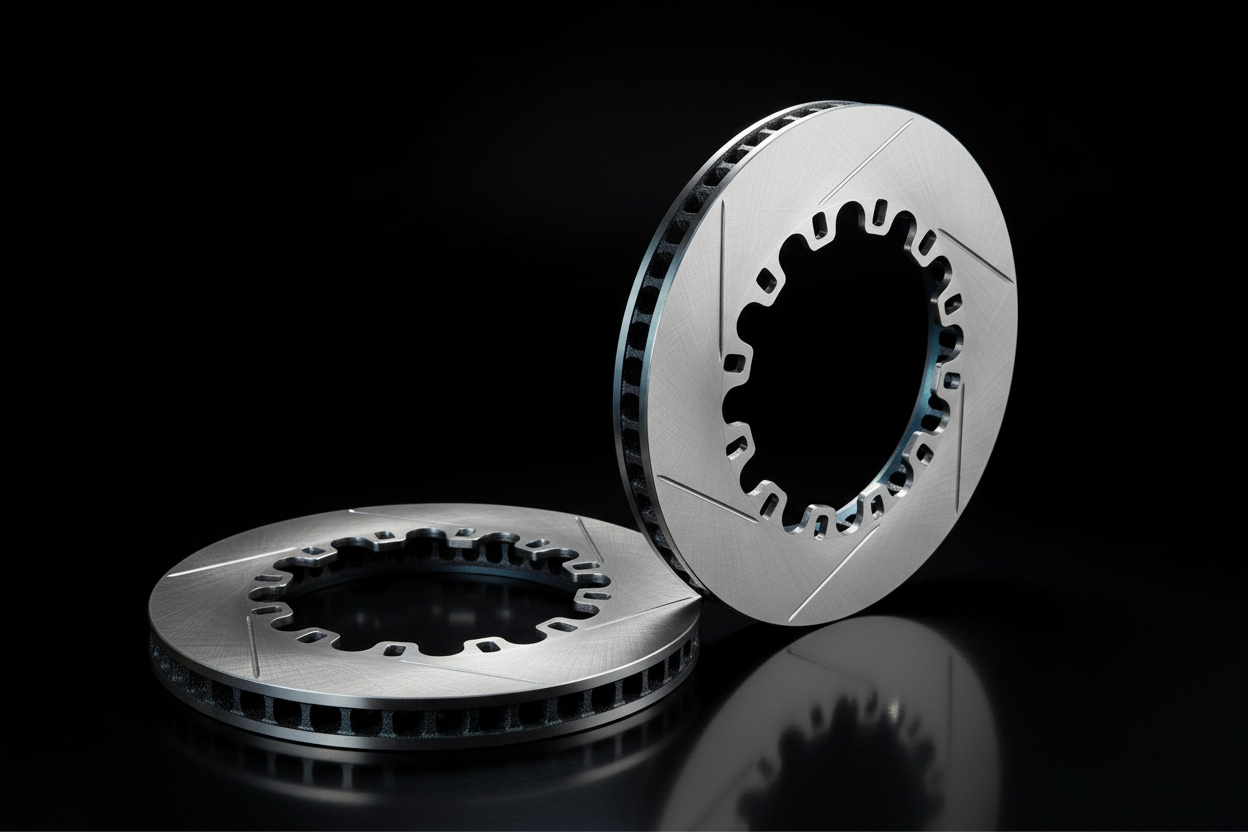

An Engineering-Driven Guide to Optimizing Brake Torque, Thermal Capacity, and System Balance

When a performance big brake kit is offered in multiple rotor diameters, the decision is not cosmetic, it is an engineering optimization problem.

Rotor diameter directly affects:

• Brake torque generation

• Thermal energy absorption and rejection

• Pad operating temperature range

• Unsprung and rotational mass

• Wheel, suspension, and ABS system interaction

At AlconKits, rotor diameter options are not arbitrary. Each size exists to address specific vehicle mass, duty cycle, and operating envelope. This guide explains how to select the correct rotor diameter based on physics, not trends.

Fundamental Relationship: Rotor Diameter and Brake Torque

Brake torque (T) is defined as:

T = F × r

Where:

• F = clamping force generated by the caliper

• r = effective radius of the rotor (distance from hub center to pad centroid)

Increasing rotor diameter increases braking torque linearly, without increasing pedal force or hydraulic pressure.

Key implications:

• Larger rotors reduce required caliper piston force for a given deceleration

• System operates at lower line pressures for the same braking output

• Improves modulation and reduces peak component stress

This is why rotor diameter selection is inseparable from caliper sizing and piston area, not an independent decision.

---

Energy Management: Why Rotor Diameter Matters More Than Thickness Alone

Brakes do not “stop the car", they convert kinetic energy into thermal energy.

Kinetic energy to be absorbed per stop is:

E = ½ m v²

Where:

• m = vehicle mass

• v = vehicle speed

Rotor diameter contributes to thermal performance in three critical ways:

1. Thermal Mass Distribution

A larger diameter rotor distributes mass farther from the hub, increasing:

• Total heat capacity

• Thermal leverage across the friction ring

This reduces peak surface temperatures during high-energy stops.

2. Surface Area and Convective Cooling

Larger rotors increase:

• Friction surface area

• Internal vane length

• Exposure to airflow

This improves heat rejection between braking events, which is critical for repeated stops (track use, mountain driving, towing).

3. Pad Temperature Stability

Oversized rotors can actually underutilize certain pad compounds by keeping temperatures too low, preventing them from entering their optimal friction window.

Correct rotor sizing ensures:

• Pads operate within designed temperature range

• Stable coefficient of friction

• Predictable pedal feel

First-Order Constraint: Wheel and Caliper Envelope

Rotor diameter selection is ultimately bounded by:

• Wheel barrel diameter

• Spoke profile and caliper radial clearance

• Caliper bridge height

Many Alcon performance brake kits are available in two or more rotor diameters specifically because:

• Different wheel designs allow different envelopes

• Vehicle use cases vary significantly

A wheel that clears a 380mm rotor may not clear a 390mm rotor, even if nominal diameter suggests it should. Radial and axial clearance matter equally.

This is why fitment validation—not just published wheel diameter—is critical.

Best Rotor Diameter by Technical Use Case

Below is a use-case-driven analysis, not a marketing tier list.

Best Rotor Diameter for Optimized Street Performance

Typically: 355–365mm

From an engineering standpoint, this range offers the highest efficiency per kilogram for street-driven vehicles.

Technical Advantages

• Lower polar moment of inertia

• Faster transient response

• Reduced unsprung mass impact on suspension kinematics

• Quicker thermal ramp into pad operating range

Engineering Tradeoffs

• Reduced thermal headroom for repeated high-energy stops

• Less margin for heavy vehicles or sustained downhill braking

This size range is ideal where:

• Braking events are intermittent

• Cooling time exists between stops

• Vehicle mass and duty cycle are moderate

---

Best Rotor Diameter for Dual-Purpose Street & Track Use

Typically: 370–380mm

This is the engineering compromise point most often recommended for high-performance vehicles.

Why This Range Works

• Meaningful increase in brake torque without excessive mass

• Higher thermal capacity delays fade onset

• Lower peak rotor and pad temperatures per stop

• Improved pad wear uniformity under repeated braking

System-Level Benefits

• Reduces fluid boiling risk

• Decreases caliper seal thermal exposure

• Improves consistency during long braking zones

From a purely technical perspective, this range delivers the highest total system stability across mixed use cases.

Best Rotor Diameter for Sustained High-Load Braking

Typically: 390–410mm+

This range exists to solve thermal saturation, not stopping distance.

When Larger Is Justified

• Heavy vehicles

• Track use with repeated high-speed braking

• Towing or sustained downhill loads

• High aerodynamic drag platforms that brake from high speeds repeatedly

Engineering Benefits

• Maximum heat absorption per braking event

• Lower average operating temperature

• Reduced thermal gradients across the rotor face

• Increased pad longevity in endurance scenarios

Engineering Costs

• Increased unsprung mass

• Higher rotational inertia

• Slower warm-up in street conditions

• More restrictive wheel fitment

These tradeoffs are acceptable only when the thermal duty cycle demands it.

Unsprung Mass vs. Thermal Margin: The Real Trade Study

Rotor diameter increases both:

• Unsprung mass (affects ride and grip over bumps)

• Rotational inertia (affects acceleration and steering response)

However, insufficient rotor size increases:

• Peak operating temperatures

• Pad glazing risk

• Fluid degradation

• Seal wear and caliper fatigue

Correct sizing balances:

• Suspension performance

• Thermal durability

• Pedal consistency

This balance is why Alcon rotors are engineered with:

• Optimized internal vane geometry

• Directional cooling where applicable

• Material selection focused on stiffness-to-mass ratio

Rotor diameter alone is not the answer, effective rotor design is.

Why “Biggest That Fits” Is Often the Wrong Answer

From an engineering perspective, oversizing rotors can:

• Prevent pads from reaching optimal temperature

• Increase system inertia without usable benefit

• Shift brake bias unnecessarily

• Reduce efficiency in normal driving

The correct question is not:

“What is the largest rotor I can fit?”

It is:

“What rotor diameter allows the braking system to operate in its optimal thermal and mechanical window for my use case?”

---

Summary: Engineering-Based Rotor Selection Matrix

Final Engineering Takeaway

Rotor diameter is not a cosmetic choice, it is a system-level engineering decision that affects every aspect of braking performance.

The correct rotor:

• Generates required torque with minimal system stress

• Manages thermal energy without saturation

• Preserves suspension performance

• Keeps pads and fluid in their intended operating range

Every rotor diameter option we offer at AlconKits exists to solve a specific engineering problem. Our role is to ensure the solution matches your vehicle, your wheels, and your braking duty cycle—not just a spec sheet.
