This item is made to order and configured to your exact order specifications. Please contact us for an estimated ship date.
This information is a general guide for wheels that fit this brake kit. For ✔guaranteed fit (only applicable if you buy direct from Alconkits.com) check using the wheel template below. Instructions on use.
These wheels have been tested to fit:
18-inch Toyota Alloy 5-Spoke (42611-60A50)
17-inch Toyota Steel ‘Pepperpot’ (42611-60A60)
Many aftermarket 17" and larger wheels. (Use templates below to check)
Explore common maintenance items for this brake kit.
Specifications:
Manufacturer:
Alcon Brakes
SKU:
BKF1559K02
UPC:
854071008409
Shipping Weight:
105.0 lbs
Location:
Stage 1 Front only
PRODUCT INFORMATION
Alcon Armored/Off-Road Toyota LC200 complete brake system. Front uses 6 piston calipers with heavy duty 355mm x 36mm rotors. Rear features 4 piston calipers with and 370mm x 28mm rotors. 45% reduced brake temperature for more reliable stops in heavy duty applications. Up to 12,700lbs (5800kg)
Front/Rear kit supports up to 12,700 lbs / 5800kg Front kit supports up to 9,900 lbs / 4500kg
***APPLICATION NOTES ***
Validate caliper bracket bolts must be M12 to use this kit. - LC200 under 4500kg should use front kit only.
Dust Shields may need to be modified either cutting or removing for proper fitment
These kits were designed through extensive testing in Alcon’s military and armored program for many years and are an extremely effective and proven platform used worldwide by both NGO and official vehicles.
Benefits
45% reduction in brake disc temperature rise
42% reduction in pad work rate for longer life and more torque
10% less pedal effort
10% increase in brake torque.
Featuring
Ductile iron calipers for the best abrasion resistance. No worries about rock and debris strikes
Zinc finish for maximum corrosion protection and subtle OEM look. (Customer powdercoating is available!)
HIgh friction/High temp brake pads
Larger rotors for shorter stopping distance every time, not just the first or second stop.
High temperature seals
Fits under most 17" and 18" wheels
Bleed screws on the inboard side for impact protection and tamper resistance.
Front Includes:
SIX piston front calipers measuring 41.3mm each
Front 355mm (14.0") x 36mm (1.4") rotors internally vented
AV1 Compound Brake Pads
Brackets
Stainless Brake Lines
Rear includes:
FOUR piston rear calipers 34.9mm ea.
Rear 370mm (14.5") x 28mm (1.2mm) rotors internally vented.
AV1 Compound Brake Pads
Brackets
Stainless Brake Lines

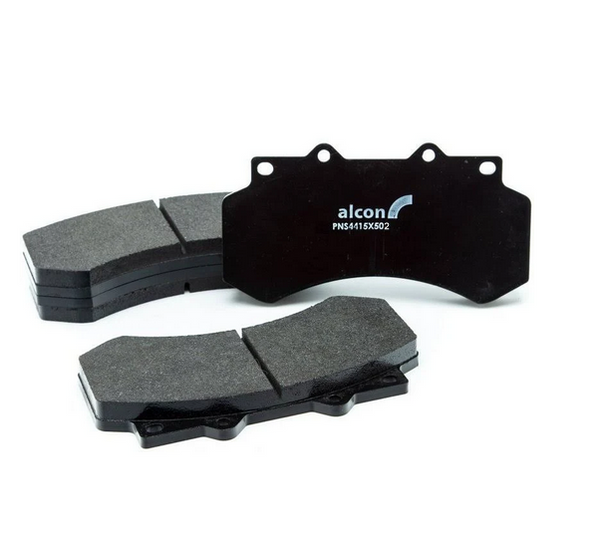

Service Parts - Front Kit Rotors - DIV3430X985C24 Pads - PNS4415X502.4 Calipers - CIR1559K08HZL/R Brackets - BSK4415X560 Pin kit - PKR4415X540KS Brake Line Kit - MHA3430X761 Bleed Screws - 03.3518-0066.1
Service Parts - Rear kit Rotors - DIV3430X964C24 Pads - PNS0084X449S.4 Calipers - CIR5059D01HZLT/RT Brackets - BSK4415X560 Pin Kit - PKR4450X304KS Brake Line Kit - MHA3430X745 Bleed Screws - 03.3518-0066.1
SKU: BKF1559K02
Big Brake Kit common questions
Installation
What tools do I need to install?
Our brake kits require common hand tools for installation. You will need a torque wrench, brake fluid (2 pints), and loctite.
What if I run into issues while installing?
We pride ourself in expert advice. You can call or text us at 630-360-2548 for expert technical and installation advice.
Are any other modifications required?
For OEM installations where wider rotors are fitted, you should expect to remove or trim the rotor dust/heat shield. This often interferes with larger rotors but is no longer needed due to our upgraded components.
Will I need a new Master Cylinder
No. All of our brake kits are designed specifically to work with the hydraulic ratio of your stock master cylinder
Do I need wheel spacers
We provide a fitment template for you to check clearance in advance. In some cases a small spacer may be required and we provide those when we are sure they are needed.
Are brake pads included?
Yes. We include the appropriate brake pads for all our brake kits. In some cases we offer multiple compounds for you to customize your experience. We stock a wide variety of pads for Alcon Brake kits here.
Break In questions
Do I need to brake in new rotors/pads?
Yes! We highly recommend following our brake pad/rotor bed in process. This ensures that an even layer of pad material is deposited on the rotor to eliminate shudder, increase rotor life, and to heat temper the new rotors for longer life.
What about noise and dust?
Noise and dust are related to the brake pad compound. Higher temp pads have more metallic composition and will therefore increase potential noise and dust the more aggressive the pad. For squealing issues we recommended loosening the caliper and re tightening it. This will sometimes change the caliper "frequency". Additionally "sticky shims" or our titanium pad shims will reduce noise.
Operational Questions
Is this compatible with my ABS?
Yes! We test our brakes to ensure they are fully compatible with your stock ABS on all models we release.
How long do they last?
Lifetime of components is massively variable based on how they are used. High dust/dirt/salt environments will wear seals out more quickly. Heavy Duty or Track use will also affect rotor and pad life.
What is the warranty?
We support the manufacturers 12 month/12000 mile warranty against factory defects and material issues. You can find more details here.
Where can I learn more about your brakes?
We have years of brake content for you if you are interested in learning more
