Alcon 2021+ Ford Raptor Gen 3 Big Brake Kit - Front
FREE SHIPPING: Experience increased brake torque and heat capacity with Alcon's Gen3 Raptor Front Big Brake Kit. Our Heavy Duty kit features six (6) piston calipers for front and rear, and heavy duty upgraded rotors, inspired by our Military and off-road expertise, and pioneered in our armored program.
Install Q&A
Do I need the Tie rods, spacers, or shims?
The answer is “it depends.” Ford seems to be sourcing components from multiple suppliers with some variability in the specs. We don’t include the spacers or tie rods to reduce the kit cost because 80-85% of the Raptors don’t need any of them. It does come with the shims.
We do keep the spacers and tie rods in stock and can ship them quickly if needed.
Our advice is order the kit as-is. They install readily on most trucks – and we’re here to walk you through it, and if you need any additional parts we can hook you up fast. The only expensive items are the tie-rods but they are rarely needed. Want to be safe? Budget for them "in your head", just in case.
What about modifications?
You should expect to have to trim the dust shields and potentially clearance the ends of a few bolts on the spindle/hub, but this is not always necessary.
The Alcon Gen3 Raptor Big Brake Kit brings significant gains in performance over stock braking system:
- Up to 14% reduction in disc temperature rise
- Up to 15% reduction in pad work rate
- Up to 5% increase in available brake torque
- Up to 6% reduction in pedal effort

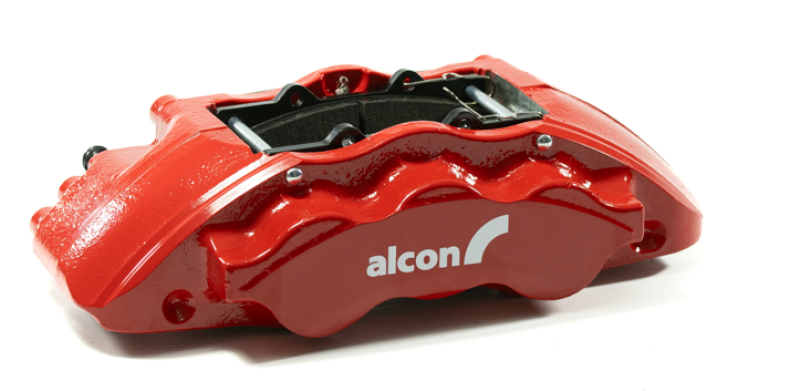

Ductile Iron caliper housing providing maximum strength and stiffness as well as high resistance to impact and fatigue. Epoxy acrylic paint over acid zinc finish for maximum corrosion protection High friction pads increase stopping power
Larger rotors increase brake torque and thermal capacity, reducing potential for brake fade. Increased pad area reduces temperatures and increases pad life
Specifications
- High temperature seal material as used in highest levels of motorsport
- Wiper seal on every piston for dirt exclusion
- Compatible with stock OEM actuation
- Retains and utilizes OEM parking brake

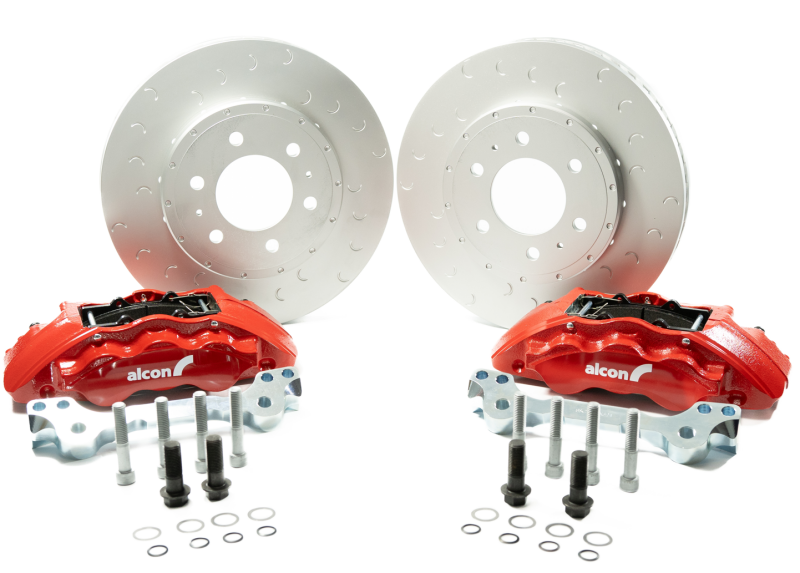

Each kit Includes
- Left Caliper (1)
- Right Caliper (1)
- Pads (4)*
- Pad Retainer Kit

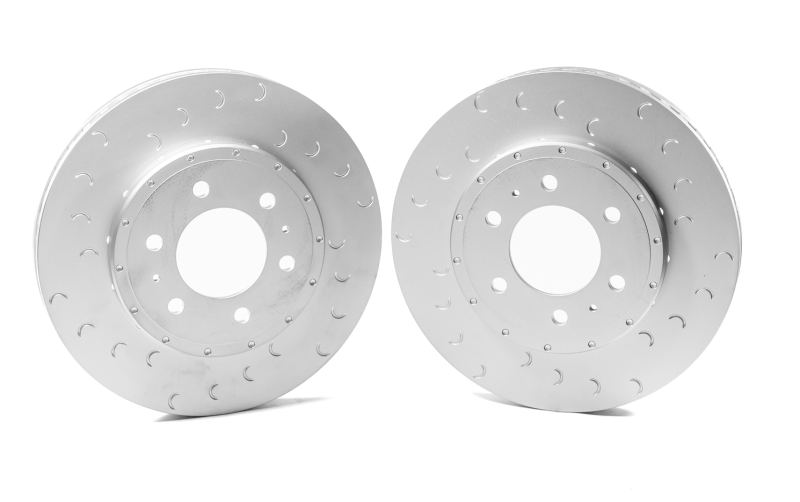

- Left Rotor
- Right Rotor

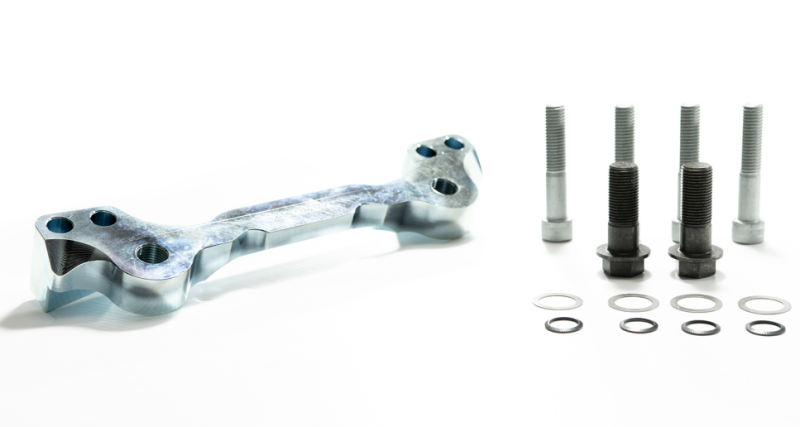

- Bracket Kit
