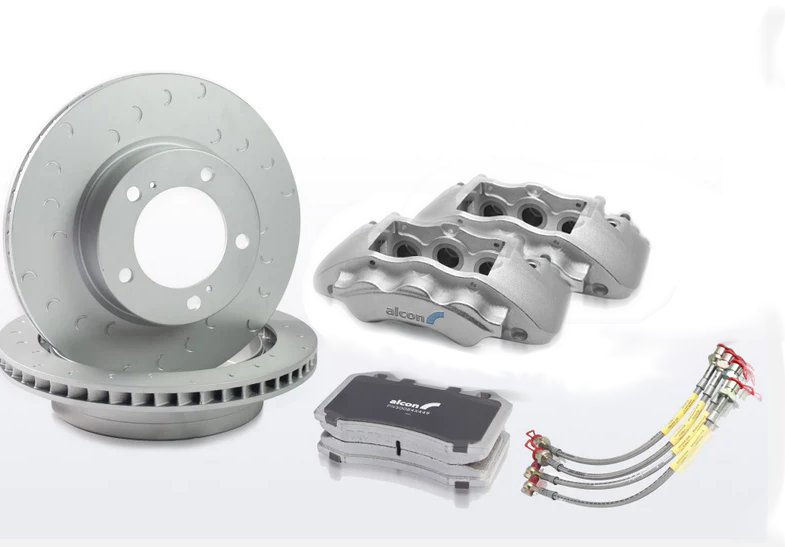

Toyota LC200, Tundra (XK50) & Lexus LX570 (16-21) Big brake kit

SKU BKF1559K18
Original price $2,675.00 - Original price $8,025.00
Original price $6,525.00
$2,675.00 - $7,549.00
Current price $3,850.00
Color: Zinc
Location: Stage 1 - Front only

Estimated delivery: -

Ask a question

Alcon Armored/Off-Road 2016-2021 Toyota LC200, Toyota Tundra and Lexus LX570 complete brake kit. The front kit uses 6 piston calipers with 355mm x 36mm. The rear has 4 piston calipers and 370mm x 28mm rotors. 45% reduced brake temperature for more reliable stops in heavy duty applications. Select the front/rear bundle for additional discount.  This is for the XK50 Chassis.

Front kit up to 9,900 lbs (4500kg) weight
Front/Rear kit up to 14,300 lbs (6500kg) weight

***Does NOT fit with aftermarket spindles, Camburg, etc.. ***

Looking for a custom color to compliment your truck?

Calipers come zinc plated from the factory. If you want something else, our expert customization shop will get you *exactly* the color and finish you want. (Custom colors add 2-3 weeks for the work)

- Validate caliper bracket bolts must be M14 to use this kit.
- LC200 total weight under 9900lb (4500kg) should use front kit only.

- Does not fit with aftermarket spindles


These kits were designed through extensive testing in Alcon’s military and armored program for many years and are an extremely effective and proven platform used worldwide by both NGO and official vehicles. The basis of our newest Ford Raptor and Jeep kits was this research and knowledge.


  • 45% reduction in brake disc temperature rise
  • 42% reduction in pad work rate for longer life and more torque
  • 10% less pedal effort
  • 10% increase in brake torque.


  • Ductile iron calipers for the best abrasion resistance. No worries about rock and debris strikes
  • Zinc finish for maximum corrosion protection and subtle OEM look. (Custom powdercoating is available!)
  • High friction/High temp brake pads
  • Larger rotors for shorter stopping distance every time, not just the first or second stop.
  • High temperature seals
  • Fits under most 17" and 18" wheels
  • Bleed screws on the inboard side for impact protection and tamper resistance.

Front Includes:

  • SIX piston front calipers measuring 41.3mm each
  • Front 355mm (14.0") x 36mm (1.4") rotors internally vented
  • AV1 Compound Brake Pads
  • Brackets
  • Stainless Brake Lines

Rear includes:

  • FOUR piston rear calipers 34.9mm ea.
  • Rear 370mm (14.5") x 28mm (1.2") rotors internally vented.
  • AV1 Compound Brake Pads
  • Brackets
  • Stainless Brake Lines

Wheel fitment
18-inch Toyota Alloy 5-Spoke (42611-60A50)
17-inch Toyota Steel ‘Pepperpot’ (42611-60A60)

Service Parts - Front Kit
Rotors - DIV3430X985C24
Pads - PNS4415X502.4
Calipers - CIR1559K08HZL/R
Brackets - BSK4415X577
Pin kit - PKR4415X540KS
Brake Line Kit - MHA3430X761
Bleed Screws - 03.3518-0066.1

Service Parts - Rear kit
Rotors - DIV3430X964C24
Pads - PNS0084X449S.4
Calipers - CIR5059D01HZLT/RT
Brackets - BSK4450X566
Pin Kit - PKR4450X304KS
Brake Line Kit - MHA3430X745
Bleed Screws - 03.3518-0066.1
