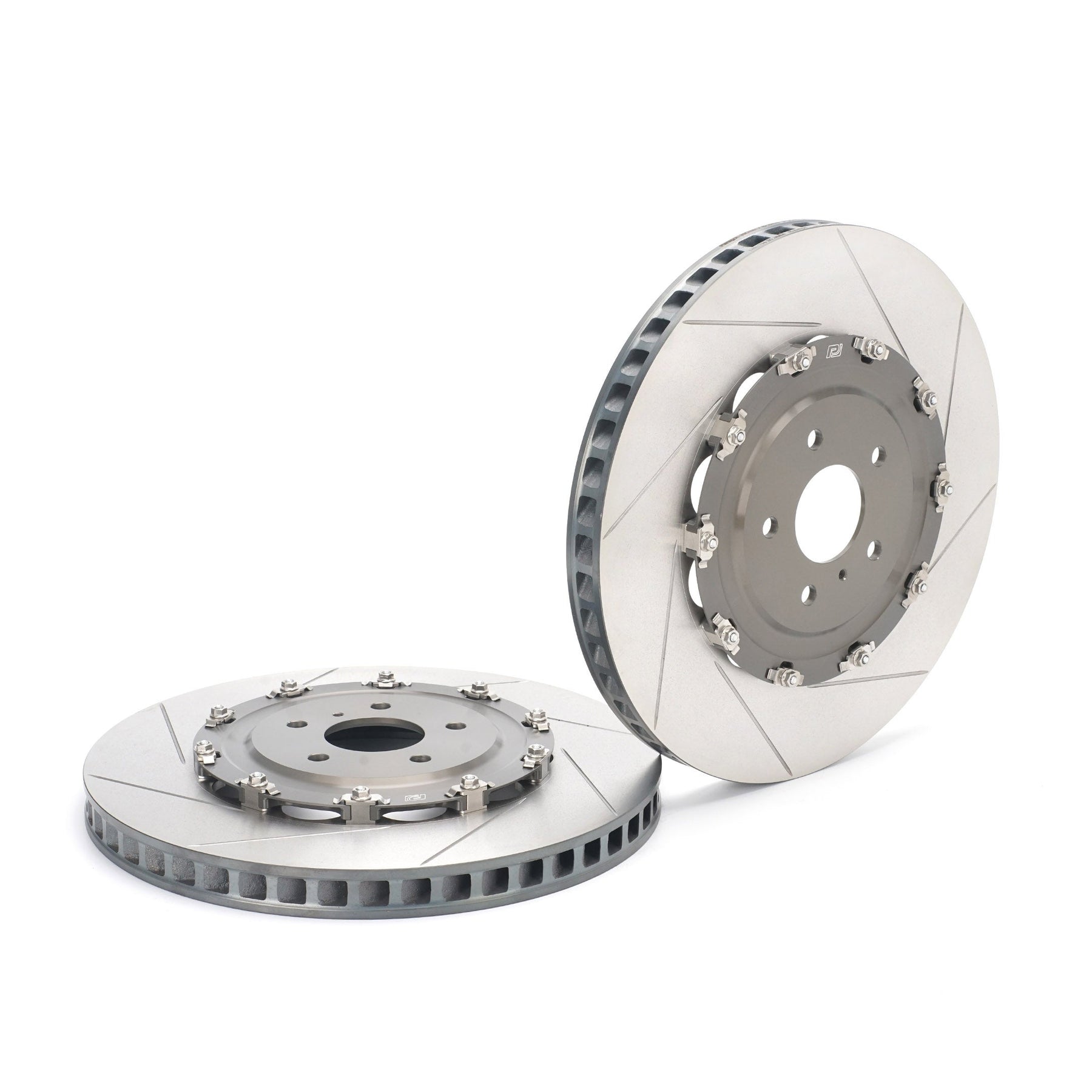

GT-R R35 Front Rotors: 390mm Stock Size vs 396mm Paragon 2-Piece

The 390mm stock-size Paragon is the right call for DBA/EBA GT-R owners who want a direct bolt-on upgrade with no fitment changes: same diameter as OEM, no caliper spacers, and a genuine improvement in vane design and construction over the factory rotor. The 396mm Paragon adds 6mm of diameter and 1.2mm of thickness for greater thermal mass, and suits owners who run extended track sessions or regularly push the car hard enough that fade becomes a real conversation. It fits OEM 20-inch wheels, includes the required caliper spacers, and also covers CBA-generation (2008–2011) cars.

Spec Comparison

390mm Stock-Size Paragon: The Smart Bolt-On

The OEM DBA/EBA front rotor measures 390 x 32.8mm and uses 48 non-directional pillar vanes. The Paragon 390mm matches those dimensions exactly, which means this swap needs nothing beyond what's in the box: no spacers, no bracket machining, no rethinking your wheel fitment. It replaces Nissan part 40206-KJ10A and is confirmed for 2012-and-later DBA and EBA cars, plus the 2015–2016 GT-R Nismo.

Where Paragon earns the upgrade label is in the construction details. The OEM rotor uses non-directional pillar vanes; Paragon replaces those with 48 curved directional vanes that actively pull cool air through the rotor as the wheel spins. The ring is cast from CM-250 high-carbon alloy iron and CBN turned to a lateral run-out tolerance of 0.03mm or better. The aluminum hat is 6061-T6 billet, connected to the ring via stainless H-bobbins that allow the ring to expand thermally without transferring stress to the hat or the hub. That floating interface is also what separates both Paragon options from a conventional one-piece replacement.

The hat finish choice matters more than it might seem. Both Type III mil-spec options (black hard anodize or clear/natural hard anodize) are available. The black finish can discolor above 260°C (500°F), which happens routinely on track. For serious track days, Paragon recommends the clear finish. For a street car where the look behind an open-spoke wheel is the priority, black holds up fine and reads as purposefully built.

Who it's for: DBA/EBA owners replacing worn rotors, anyone who wants the visual upgrade of a 2-piece floating unit without touching the rest of the brake system, and drivers who occasionally track the car but primarily use it on the street. At 27.07 lbs per assembled rotor versus the OEM's 25.5 lbs, there is a modest weight increase over stock. The payoff is directional vanes, a floating interface, and a ring that can be replaced independently when the friction material eventually wears to the service limit.

Honest trade-off: The 30.8mm service limit gives you 2mm of usable wear before replacement (the same margin as OEM). For drivers running sustained track sessions where rotor temperatures climb hard and stay there, the larger rotor's extra thermal mass becomes a more compelling argument.

396mm Larger Rotor Paragon: More Mass, More Headroom

Six millimeters of additional diameter and 1.2mm of additional thickness add up to meaningfully more thermal mass. A bigger, thicker rotor absorbs more energy before its surface temperature reaches the threshold where fade begins, and it holds that heat longer during a cooling lap. Paragon specifically recommends this rotor for extended track use, calling out fade and judder reduction as the target outcomes. Both are products of sustained high-temperature cycling, and both get worse faster on a smaller rotor.

The 396mm rotor also covers CBA-generation cars (2008–2011 GT-R and GT-R Spec V), which run a smaller 380mm OEM rotor. For CBA owners, this is a genuine step up in diameter; for DBA/EBA owners moving off the stock size, it's a 6mm gain. Either way, steel caliper spacers are included in the kit to position the OEM Brembo caliper correctly over the larger ring.

Paragon confirms the 396mm clears the OEM R35 20-inch factory wheels (20 x 9.5 +45 front). If you're running aftermarket wheels smaller than the OEM diameter, confirm spoke clearance before ordering, as that minimum dimension is not published in Paragon's spec sheet.

Structurally, the 396mm shares everything with the 390mm: the same CM-250 iron ring, 6061-T6 aluminum hat, H-Bobbin 10-bolt floating mount, 48 directional vanes, CBN-turned surface, and 0.03mm run-out spec. Per-rotor assembled weight is 28.5 lbs, about 1.4 lbs more than the 390mm unit. The 32mm service limit provides 2mm of usable wear before ring replacement, the same proportional margin.

Who it's for: GT-R owners who run dedicated track days, high-performance driving events, or canyon roads where the brakes work hard over sustained distances. Also the answer for CBA owners stepping up from the 380mm OEM diameter. And for anyone who wants the largest-diameter Paragon 2-piece the R35 platform can accept with OEM calipers: this is it.

Honest trade-off: Installing the included caliper spacers adds one step to the job versus a direct bolt-on. The 2017+ GT-R Nismo is not covered; those owners need to contact Paragon directly for the correct variant. At roughly 3 lbs more per pair (assembled) than the 390mm option, the unsprung weight increase is real, though modest at each corner.

How to Choose

Start with your car's generation. CBA owners (2008–2011) have one confirmed option here: the 396mm. DBA/EBA owners (2012 and later, excluding 2017+ Nismo) can run either size.

Then think honestly about how you use the car. If the GT-R is primarily a street car that occasionally sees a track day, the 390mm is the correct choice. It is a direct OEM-diameter replacement that upgrades the rotor's internal structure and surface finish without requiring additional fitment work. The directional vanes and floating construction are a genuine improvement over the stock unit; this is not a compromise pick.

If you run dedicated track days, attend high-performance driving events regularly, or find yourself doing repeated hard stops in the mountains, the 396mm's additional thermal capacity gives you a real buffer before temperatures climb into fade territory. Paragon designed it for extended sessions, and that intent is reflected in the thicker, wider ring. The included spacers handle the fitment; the installation is still straightforward.

On wheel fitment: Paragon confirms the 396mm clears OEM 20-inch R35 wheels. If you're on aftermarket wheels, especially anything smaller in diameter, verify inner barrel and spoke clearance before committing.

On hat finish: Both rotors are available in black Type III hard anodize or clear Type III hard anodize. For track use, clear is the practical choice; it won't show heat discoloration above 260°C. For a street car where appearance matters, black is the sharper-looking option and holds up fine at street temperatures.

On ring replacement: Both assemblies use serviceable rings. When the friction surface wears to the service limit, you replace the ring only rather than the entire assembly. That serviceability is a meaningful long-term cost consideration for any GT-R that sees real track use, at either rotor size.
