Alcon 0.9375" Pivot-Mount Master Cylinder: Standard vs LHE Ready

If your rally or stage-rally pedal box does not include a hydraulic handbrake circuit, the standard Alcon 0.9375" Bore Master Cylinder (Gold Nut) covers everything you need at a lower outlay. If you are routing a hydraulic handbrake or need a secondary fluid circuit through the master cylinder body, the LHE Ready variant (MAR5250HM161MBBS) is the correct part; speccing the standard unit and trying to adapt it later is not supported by any published Alcon documentation. Buy for the build you are actually constructing, not the one you might build.

Spec Comparison

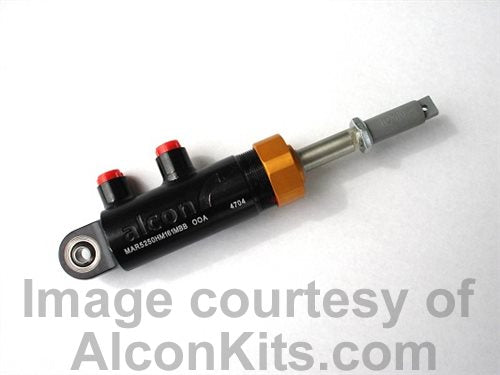

Alcon 0.9375" Gold Nut, Standard (MAR5250HM161MBB)

Who it is for

This is the unit for a competitor building a conventional two-pedal or three-pedal brake and clutch pedal box where no hydraulic handbrake circuit routes through the master cylinder body. Think front-wheel-drive stage car, tarmac rally build, or any application where the handbrake is mechanical or simply absent from the regulations. The 0.9375" bore sits at the larger end of the MAR52 range, so it moves a meaningful volume of fluid per millimetre of pedal travel: appropriate for larger caliper volumes or longer brake line runs where a smaller bore would produce a pedal that feels remote.

What stands out

The pivot-mount body is the defining feature of the entire MAR52 family. The 0.25" spherical bearing allows the cylinder to rotate with the arc of the pedal and any offset introduced by a balance bar, which minimises side loads on the push rod. That matters on a pedal box running a balance bar to bias front-to-rear: without a pivot mount, the push rod would bind as pedal geometry changes under load. The hard-anodised aerospace-grade aluminium body and a scraper seal to exclude dust and debris are consistent with the rest of the range. Assembly-calibrated breather port clearance of 0.7 mm to 1.0 mm keeps the cut-off point consistent unit to unit.

Honest trade-offs

This is a purpose-built motorsport component with no road-car application and no OEM equivalent. If your build specification evolves to include a hydraulic handbrake after purchase, Alcon does not publish any field-conversion procedure for adding an LHE port to the standard body; you would need the correct unit from the start. Equally, if your bore calculation later points to 0.875" or 1.00", this unit cannot be re-bored: bore selection is a commitment at the time of order. The standard variant is not a compromise, but it is the right tool only when your hydraulic layout genuinely does not need the LHE port.

Alcon 0.9375" Gold Nut, LHE Ready (MAR5250HM161MBBS)

Who it is for

This variant is for the competitor whose regulations permit a hydraulic handbrake and who is routing that circuit through the master cylinder. Alcon's own MAR52 product page describes the LHE option as intended for "rally car handbrake" use, which is precisely the context: a driver-operated hydraulic handbrake on a gravel or mixed-surface stage car. It also suits builds where a secondary hydraulic circuit (for example, a sequential transmission actuation line) needs to pass through the master cylinder body rather than around it.

What stands out

The sole published mechanical difference between this unit and the standard variant is an enlarged breather port diameter that accommodates the hydraulic handbrake circuit. Every other specification (bore, pivot mount, spherical bearing, maximum stroke, body material, scraper seal, and fluid port threads) is shared across the MAR52 platform. The "S" suffix in the part number (MAR5250HM161MBBS) is the consistent Alcon naming convention for LHE-ready units across the full MAR52 bore range. Buying this unit when your build requires LHE means the cylinder is correct from the first installation; there is no modification, no drilling, and no guessing.

Honest trade-offs

The exact thread specification and fitting size for the LHE port are not published by Alcon in any publicly available document, so confirm interface hardware with your pedal box supplier or Alcon directly before finalising your line and fitting order. The enlarged port is a specific engineering feature for a specific purpose: if your build does not include a hydraulic handbrake circuit, you are paying for capability you will never use. Alcon does not publish separate weight data for the LHE-ready body, so if gram-counting matters to your build, treat the 0.13 kg MAR52 series figure as an estimate and verify with Alcon.

How to Choose

The decision comes down to one question: does your hydraulic circuit require a handbrake or secondary line to pass through the master cylinder body?

No secondary circuit: order the standard MAR5250HM161MBB. The bore, pivot mount, and assembly quality are identical to the LHE variant. You are not getting a lesser product; you are getting the correct product for a conventional brake or clutch circuit.

Hydraulic handbrake or secondary circuit required: order the LHE Ready MAR5250HM161MBBS. Alcon does not publish a field-conversion path from standard to LHE, and the standard body does not include the enlarged breather port. Get the right part number before your pedal box goes together, not after.

If you are still working out whether 0.9375" is the correct bore for your caliper volume and pedal ratio, our guide to the Alcon 0.875" Pivot-Mount Master Cylinder covers the MAR52 platform in detail at the adjacent bore size and may help frame the comparison. For bore-selection calculations, contact Alcon or your pedal box fabricator directly with your caliper piston area and target pedal travel figures.
