Tesla Model 3 RWD Track Brakes: Rotor System vs Big Brake Kit

If you're doing occasional HPDE days or light track sessions and your factory brakes are fading, the Track Ready Rotor System is the right first step: it swaps both axles to Paragon 2-piece floating rotors with a track pad and fluid upgrade, keeps the OEM caliper, and works seamlessly with the Model 3's ABS and regenerative braking. If you're running sustained high-speed laps, already past the rotor upgrade, or want the maximum thermal ceiling the platform offers, the Big Brake System adds a Paragon PA035 6-piston front caliper and a thicker 72-vane rotor to give you a genuinely race-grade front end.

Spec Comparison

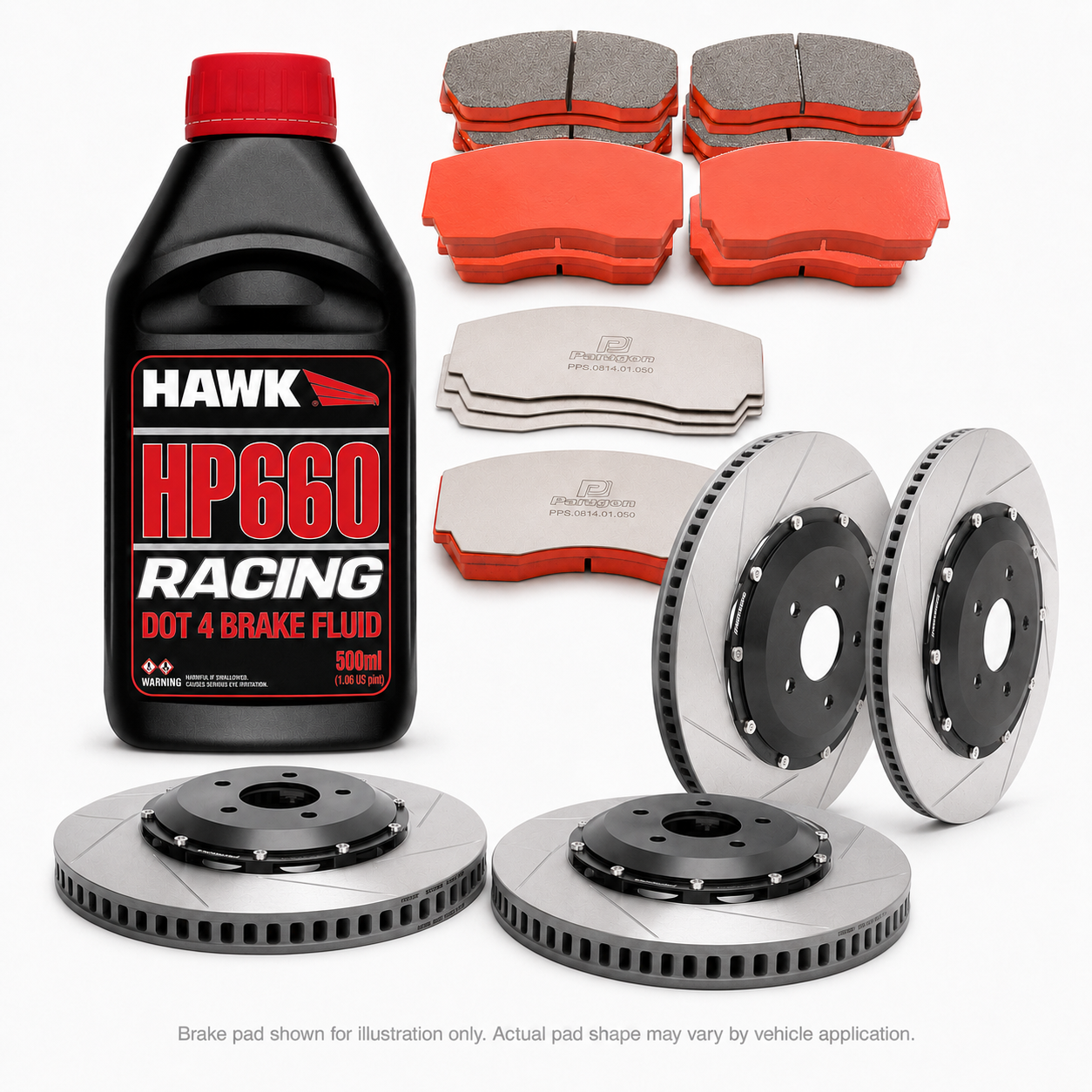

Track Ready Rotor System: Smarter First Step

The Track Ready Rotor System attacks the Model 3's biggest track vulnerability from the rotor side. The OEM front rotor measures 320 mm and is a one-piece solid cast iron unit with non-directional pillar vanes. The Paragon replacement grows the front to 365 mm (a 45 mm jump) using a 2-piece floating design: a CM-250 high-carbon alloy iron ring, heat treated and CBN surface machined to within 0.03 mm lateral runout, bolted to a hard-anodized 6061-T6 aluminum hat through stainless steel D-bobbins. That floating assembly lets the ring expand thermally without warping. The rear follows the same logic, stepping from 335 mm OEM to 370 mm with the same ring-and-hat construction, and each rear assembly saves 4.3 lbs over OEM. Both axles get Winmax track-compound pads, titanium front heat shields, and race-ready fluid.

Who it's for: Drivers doing HPDE days, one or two track weekends per year, or spirited canyon driving where the stock brakes are getting soft toward the end of a session. It also suits the status-minded buyer who wants the visual upgrade of bigger, slotted 2-piece rotors behind a set of open-spoke wheels without touching the caliper.

Honest trade-offs: This kit requires 19 in or larger wheels on both axles, and the rear fitment requires trimming or removing the OEM dust shield; not a difficult job, but one that needs to be done properly. The front caliper is unchanged, so if your issue is caliper stiffness or you're running consecutive hot laps at a technical circuit, you will eventually find the ceiling of this setup. Think of it as the right upgrade for drivers who haven't fully explored what better rotors and pads can do; many find it's enough.

Big Brake System: Full Front-End Rebuild

The Big Brake System keeps the same upgraded rear rotor package but transforms the front end completely. The Paragon PA035 is a 6-piston monoblock caliper CNC machined from billet 6061-T6 aluminum, with staggered piston bores of 27, 31.8, and 38.1 mm and titanium nitride-coated stainless steel pistons. Each caliper is pressure tested before shipping and carries DOT and TUV certification. The front rotors step up again: 378 mm or 410 mm in diameter (your choice at order), and 36 mm thick compared to 25 mm in the Rotor System. That 44% increase in rotor thickness alone represents a significant jump in thermal mass. The vane count rises from 48 to 72 directional vanes, and Paragon's spec sheet cites up to 30% cooler operating temperatures versus OEM rotors. Goodridge stainless steel braided lines replace the front rubber hoses as part of the kit.

Who it's for: Drivers running sustained laps at dedicated track facilities, instructors who brake repeatedly from high speed with passengers on board, and owners who want the definitive visual and performance statement. The PA035 is a recognizable racing-spec caliper; if your wheels show the brakes, this is the kit that justifies the wider spoke gap. The 410 mm front rotor option requires 20 in or larger wheels, which is worth verifying before you order.

Honest trade-offs: This is a more involved installation. You're replacing the front caliper and braided lines, not just swapping rotors and pads. The rear dust shield modification that applies to the Rotor System almost certainly applies here too since the rear rotor spec is the same. The PA035 kit is engineered to work with the OEM ABS and master cylinder without recalibration, so the electronic complexity of the Model 3's brake-by-wire system is accounted for, but a professional installation is strongly recommended. The 378 mm front rotor option opens fitment to 18 in or 19 in wheels, which gives owners on 18 in aftermarket wheels a path to the big caliper that the Rotor System does not offer.

How to Choose

Start by counting your track days per year and the length of your sessions. If you're doing half-day HPDE events and noticing fade in the last run group, the Track Ready Rotor System addresses exactly that problem with less installation complexity and a lower outlay. The 2-piece Paragon rotors and track pads are a genuine step up from the OEM hardware; plenty of drivers run this setup at track events without wanting anything more.

If you're doing full track days with hot lap after hot lap, or you're already running upgraded rotors and pads and still feeling heat build toward the end of a day, the Big Brake System's thicker rotor (36 mm vs. 25 mm), 72-vane airflow, and 6-piston monoblock caliper move the thermal ceiling meaningfully higher. The PA035 also opens up higher-friction Winmax compounds (R5 at mu 0.40 to 0.43, R7 at mu 0.48 to 0.53) that are spec'd for the new pad shape and caliper, widening the selection available to you as your track use intensifies.

One practical note: if you're running 18 in wheels today, the Big Brake System's 378 mm rotor option can fit where the Rotor System's 365 mm front rotor cannot (the Rotor System requires 19 in). Check your wheel clearance before assuming the Rotor System is the simpler path for your build.

For a look at the same upgrade decision on a combustion platform using the same PA035 caliper, see our BMW G8X M2/M3/M4 Track Rotors vs Full Big Brake Kit guide.
