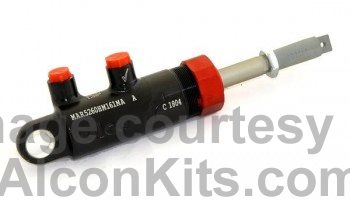

Alcon 1.00" Pivot-Mount Master Cylinder: Red Nut vs Gold Nut LHE Ready

If your brake line fittings and remote reservoir connections use the standard M10 × 1.0 metric port spec, the Red Nut (MAR5260HM161MAB) is your unit. If your build calls for the LHE-ready configuration, the Gold Nut LHE-ready (MAR5260HM161MBBS) is the correct pick. Both share the identical 1.00" bore and pivot-mount body; the distinction is entirely in the fluid port and nut specification, and fitting the wrong variant means your connections will not seal correctly.

Spec Comparison

Red Nut (MAR5260HM161MAB)

Who it’s for

Builders speccing a remote-mount brake or clutch circuit with metric M10 × 1.0 brake line fittings. This is the more commonly stocked configuration in motorsport applications that use metric plumbing, copper-washer sealing, and a straightforward remote reservoir setup.

What stands out

The Red Nut is the variant with fully published port specs: M10 × 1.0 on both inlet and outlet, sealed with a copper washer at 17–20 Nm. The pivot-mount body uses a 0.25" high-grade spherical bearing that rotates with the pedal arc and accommodates balance-bar offset, keeping pushrod side loads to a minimum. The hard-anodised aluminium body comes in at 130 g. A scraper seal is included to keep dust and debris out of the bore, and Alcon’s optional travel sensor (SHM4917C) can be integrated if your data logging setup calls for pushrod travel measurement across front and rear circuits.

One installation note from Alcon’s own documentation: the fluid outlet port must not be positioned below the horizontal axis. Plan your pedal box or firewall mounting angle with that constraint in mind before you commit to a location.

Honest trade-offs

If your build uses AN or UNF brake line fittings, the Red Nut’s M10 × 1.0 ports will require adapters. That’s a solvable problem, but it adds joints to a system where minimising them is always preferable. If your plumbing is already in a non-metric standard, look closely at whether the Gold Nut LHE-ready unit better matches your system before ordering.

Gold Nut LHE Ready (MAR5260HM161MBBS)

Who it’s for

Builders whose brake system or remote reservoir connections specifically require the LHE-ready port configuration. The “LHE ready” designation appears across the full MAR52 pivot-mount range at every bore size and is indicated by the Gold Nut colour coding and the “S” suffix in the part number (MAR5260HM161MBBS versus the plain Gold Nut MAR5260HM161MBB). If a kit, remote reservoir, or system schematic you are integrating specifies the LHE-ready variant by name or part number suffix, this is the correct unit.

What stands out

The Gold Nut LHE-ready shares the same 1.00" bore, 29.5 mm maximum stroke, pivot-mount spherical bearing body, and hard-anodised aluminium construction as the Red Nut. The Gold Nut colour coding and the LHE-ready designation are what differentiate it at a glance and in the part number, making it straightforward to verify you have the right unit when building or checking a system.

Honest trade-offs

Alcon has not published the Gold Nut’s port thread specification in any publicly available spec sheet, nor has the LHE acronym been defined in published documentation. That means the decision to run this variant should be driven by a specific system requirement: a kit or reservoir that calls for it by name, a team engineer’s recommendation, or direct confirmation from Alcon. Ordering it on the assumption it “might fit better” without knowing what your plumbing requires is the wrong approach. When in doubt, contact Alcon or the Alconkits team with your fitting specs before purchasing.

How to Choose

The bore is identical on both units, so pedal feel and fluid displacement are not the deciding factors here. The decision comes down to one question: what does your brake line plumbing and remote reservoir connection actually require?

• If your fittings are M10 × 1.0 metric and you are running a copper-washer seal arrangement, the Red Nut (MAR5260HM161MAB) is the documented, straightforward choice.
• If your build, kit, or system schematic specifically calls for LHE-ready, the Gold Nut LHE Ready (MAR5260HM161MBBS) is the correct unit. Confirm your fitting requirements against the part number before ordering.
• If you are unsure which port spec your system needs, identify the thread standard and sealing method on your brake lines and reservoir fittings first. A wrong nut spec is not a minor inconvenience; it means the fittings will not seal and the system cannot be used safely.

For a look at how the same Red Nut versus LHE-ready decision plays out at the 0.9375" bore, see our Alcon 0.9375" Pivot-Mount Master Cylinder: Standard vs LHE Ready guide. The logic is the same; only the bore size changes.

Specs sourced from Alcon’s MAR52 product page.
